The Kyuubi hands-on examples page demonstrates how to use Kyuubi.

​
Running SQL

Kyuubi provides multiple pathways to execute SQL. You can either use the Kyuubi UI or JDBC.

​
Run SQL using the Kyuubi UI

Use the following steps to run SQL using the Kyuubi UI:
  1. From the Kyuubi UI homepage, click SQL Editor.
  2. Type show schemas and click Run. It displays a result in a tabular format below the editor.

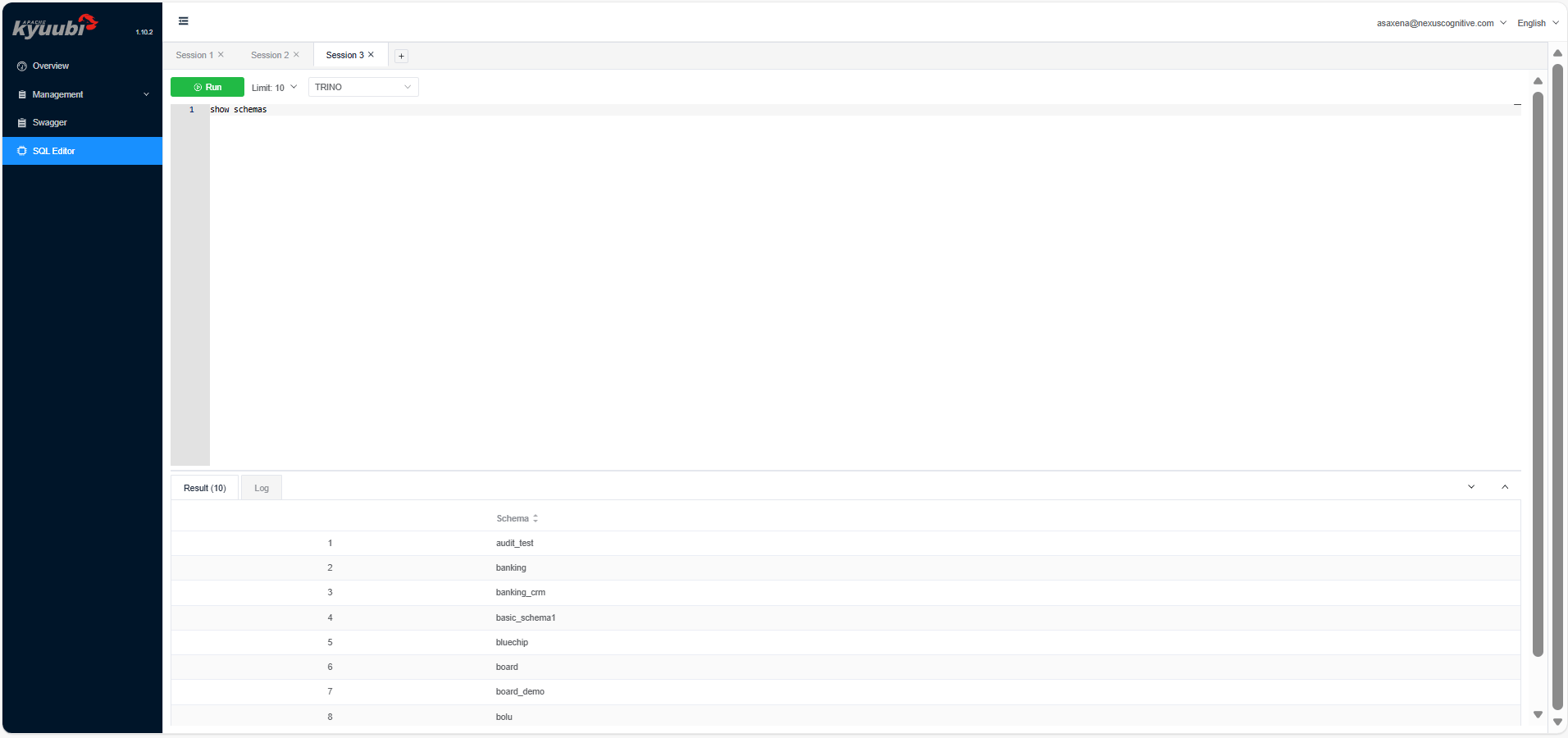

04-sql-editor-sidebar

SQL editor sidebar on the UI

​
Run SQL using JDBC

This is the standard method for programmatic and tool-based access. You use a JDBC connection string to connect from tools, such as Beeline, DBeaver, SQuirreL SQL, or your own Java/Scala app. The following example describes how to connect from Beeline:
  1. Navigate to JupyterHub
  2. Use either of the following to open the terminal:
    • From the Launcher tab, click Terminal.
    • Click + on the left sidebar to open the Launcher tab, and then click Terminal.
  3. Enter the following command:
    beeline -u "jdbc:hive2://hostname:port/default;ssl=true;transportMode=http;httpPath=cliservice" -n username -p password
  4. After successfully connecting, enter the following command:
    show schemas;

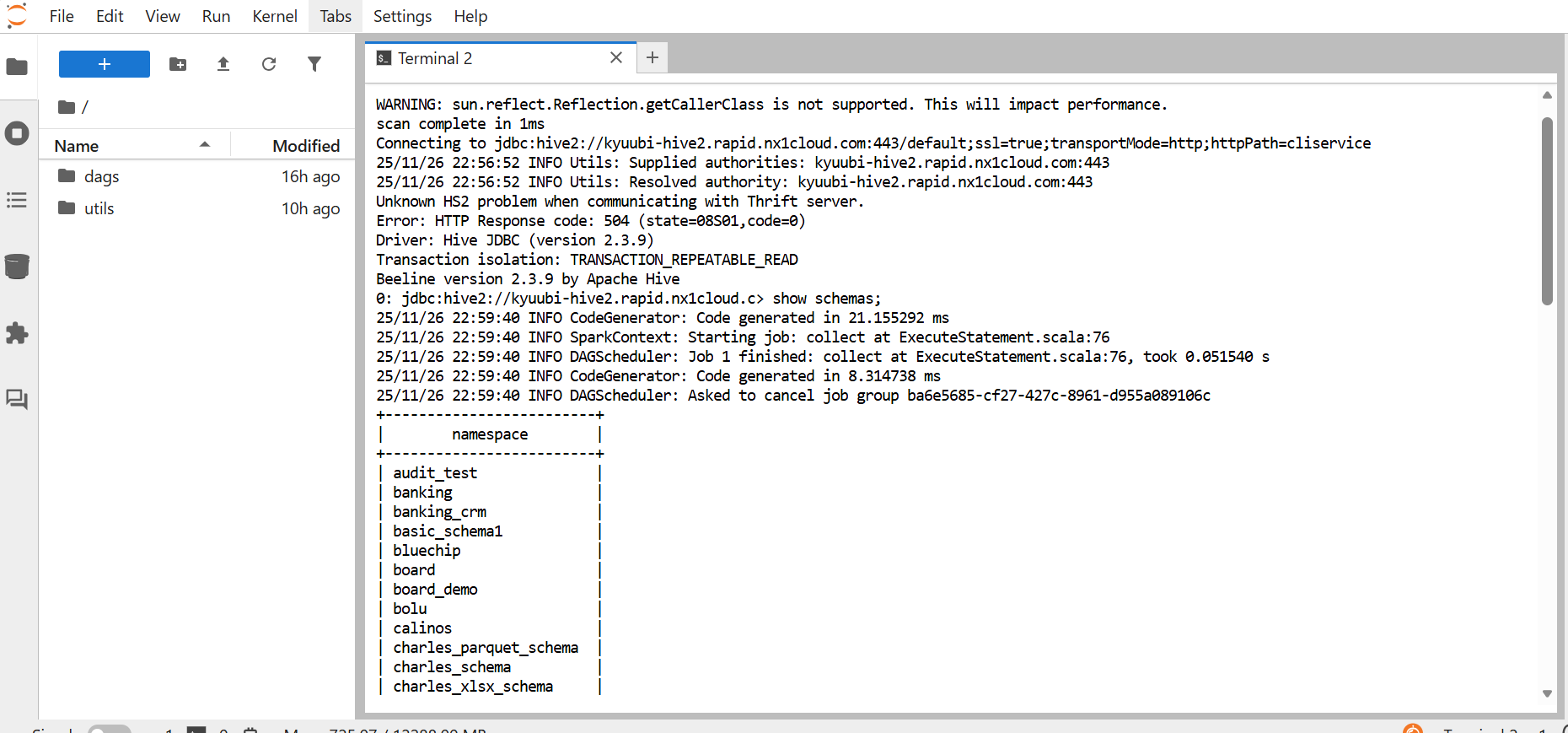

05-beeline-from-jupyterhub

A SQL command in JupyterHub using a JDBC connection from Beeline

​
Run SQL using a Trino client

You can use a Trino command-line tool to run SQL queries through the Trino engine. This provides fast, interactive querying on the same datasets managed through Kyuubi. Trino or Java are two types of Trino command-line tools you can use.
  • Trino command-line tool: This is available through Homebrew, apt/yum, or as a standalone executable. It provides a wrapper script that already knows how to start the command-line tool, which then makes the command short and simple. You can authenticate using the following command, and then run your SQL command.
    trino --server https://<host> --catalog spark_catalog --schema default --user USERNAME --external-authentication
  • Java command-line tool: This is available when you manually download the command-line tool JAR and don’t have the wrapper installed. In that case, before running your SQL command, you must launch the command-line tool directly with Java and authenticate using the following command.
    java -jar trino-cli-executable.jar --server https://<host> --catalog spark_catalog --schema default --user USERNAME --external-authentication

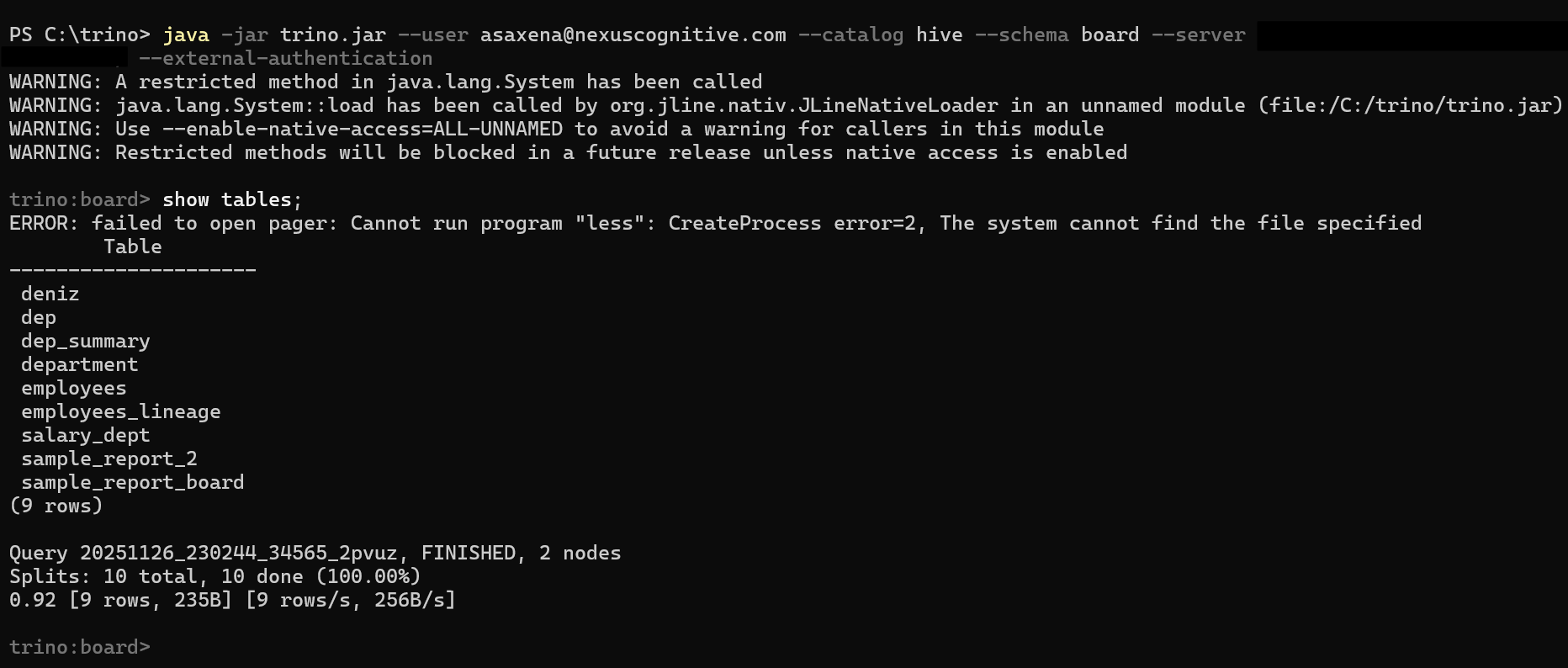

    06-java-cli-trino-auth

    A Java command-line tool initiates an SSO login session to a specified catalog and schema. Then a SQL command runs.

​
Other ways to run SQL

There are several other ways to run SQL using Kyuubi:
  • Python using PyHive or JayDeBeApi: You can connect to Kyuubi using the PyHive or JayDeBeApi libraries that speak the HiveServer2 protocol. This allows you to run SQL from Python scripts or notebooks for data engineering and science workflows.
  • BI tools: Major BI tools like Tableau, Power BI, and Superset can connect to Kyuubi using its Java Database Connectivity (JDBC) or Open Database Connectivity (ODBC) driver. This allows you to build dashboards and reports on top of your data lake.

​
Table operations

Kyuubi lets you run all kinds of SQL commands, including Data Definition Language (DDL) and Data Manipulation Language (DML). What actually works depends on the engine and table format you’re using. Key examples include:
  • Create, insert, and read tables: You can use standard SQL syntax:
    • CREATE TABLE: Defines a new table in the catalog
    • INSERT INTO: Appends data into an existing table
    • SELECT: Reads data from tables
  • Create Table As Select (CTAS) queries: A powerful and efficient operation to create a new table populated with the results of a SELECT statement. It combines DDL and DML in a single, atomic operation. For example, CREATE TABLE high_pay_employees AS SELECT * FROM employees WHERE salary > 100000;
  • UPDATE, DELETE, and MERGE availability: Support for these upsert commands varies.
    • Spark SQL with Hive tables: Traditionally, Hive tables are append-only. UPDATE and DELETE are only possible on tables that support ACID transactions.
    • Spark SQL/Trino with Iceberg tables: This is where modern table formats shine. Apache Iceberg fully supports row-level UPDATE, DELETE, and MERGE operations. These make implementing Change-Data-Capture (CDC) and complying with General Data Protection Regulation (GDPR) right to be forgotten much easier. This means you can delete specific user data without rewriting entire tables.
  • Table-format-specific behaviors with Iceberg: When working with Iceberg tables through Kyuubi with a supporting engine, you gain access to Iceberg-specific features, such as the following:
    • Time travel: Query data as it existed at a specific point in time or snapshot version using SELECT ... FOR TIME AS OF <timestamp> or SELECT ... FOR VERSION AS OF <version>.
    • Hidden partitioning: You can derive a new column from an existing one to organize data into partitions, without storing the new column in the table. For example, use a Create Table As Select (CTAS) query to create a new table and populate it with the results of a SELECT statement in a single step.
      CREATE TABLE customer_summary
AS
SELECT
    customer_id,
    COUNT(order_id) AS total_orders,
    SUM(order_amount) AS total_spent
FROM orders
GROUP BY customer_id;

​
Logging and monitoring

Effective logging and monitoring are crucial for operating and debugging a distributed system like Kyuubi. It provides multiple layers of observability, which include the following:
  • Query logs: These are high-level logs that focus on individual SQL statements. They show the execution plan, progress, and any errors encountered during the query’s runtime. Key details include:
    • Primary location: On the Kyuubi UI, specifically, after executing a query in the SQL Editor tab
    • Content: Includes the SQL text, start/end time, status, and the full output from the engine

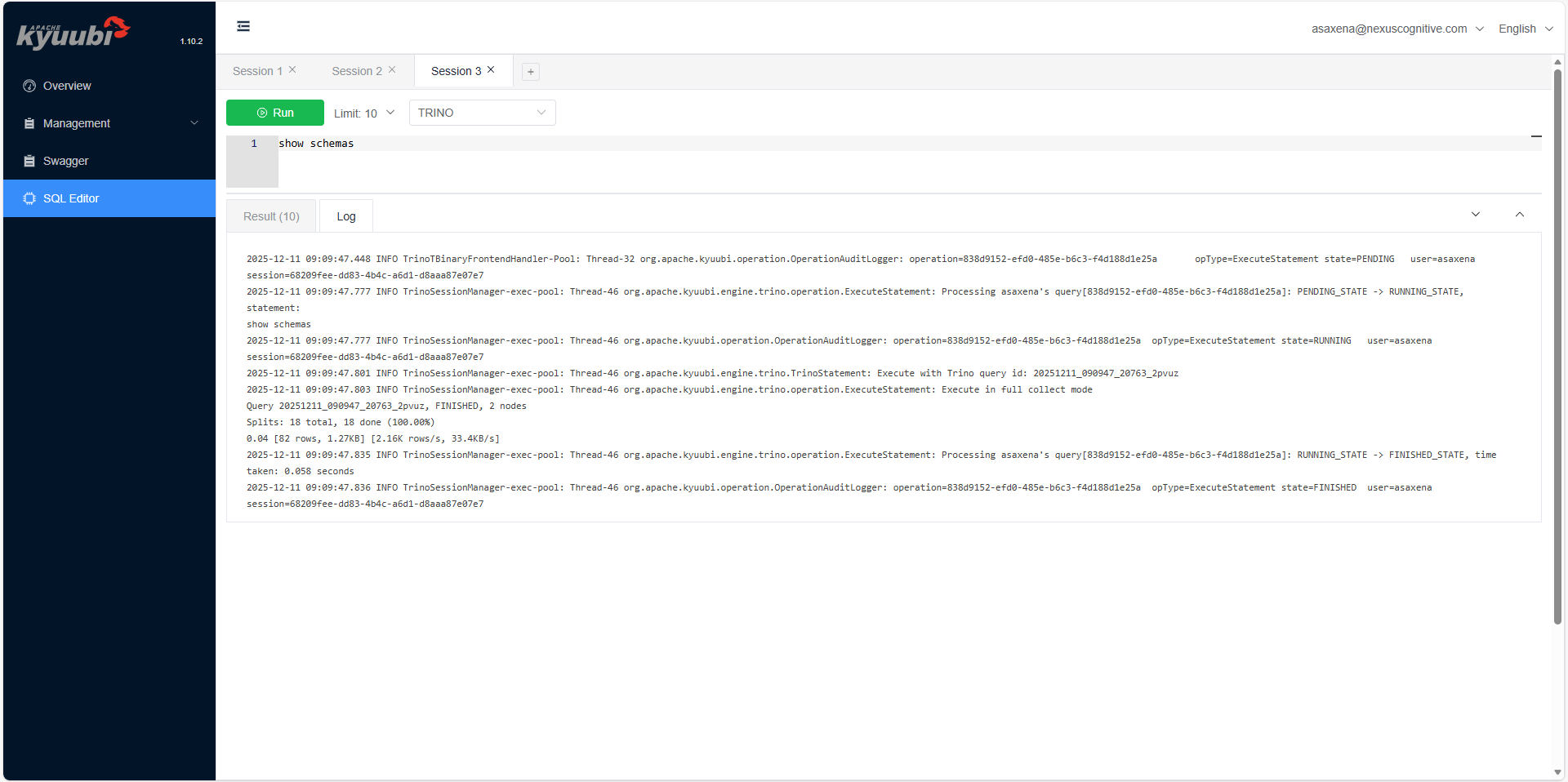

      07-query-logs

      Sample log outputs from a query
  • Engine logs: These are logs associated with the engine instance, such as the Spark driver process. They’re more general than query logs and contain information about the engine’s lifecycle, configuration, and any errors that occur outside a specific query. You can find the engine logs in the Kyuubi UI under the “Engines” tab. Each running engine has a link to its logs.

​
Tools for debugging

You can use the Spark UI and History Server to get a deeper look into your Kyuubi engine’s performance:
  • Spark UI: For actively running Spark engines, the Kyuubi UI provides a direct link to the associated Spark Application UI. This UI shows detailed DAGs, task execution times, garbage collection metrics, and data skew information.
  • Spark History Server: Once an engine terminates, you can check its full execution history in the Spark History Server by using the app ID from the engine logs. This lets you trace what happened and pinpoint performance issues more effectively.

​
Typical debugging workflow

When a query fails or runs slowly, you can use the following debugging workflow to track down the issue:
  1. Start in the Kyuubi UI when a user reports a failed query.
  2. Check query logs by navigating to the Engines tab. Find the failed query, and click Logs. The error message here might be Table not found, Permission denied, which then points you in the right debugging direction.
  3. If the error is unclear, check the engine logs for the session to look for broader issues such as a classpath conflict or engine disconnection.
  4. For performance issues, when the query is slow, click the link to the Spark UI. Examine the job’s DAG visualization and task metrics to identify stages with long-running tasks, data skew, or excessive shuffling.

​
Security

Kyuubi operates in a secure enterprise environment by integrating with standard authentication and authorization systems, to ensure that you can control and audit data access. The following list describes how Kyuubi enforces security:
  • Authentication mechanisms: This is the process of verifying your identity. Kyuubi can use OAuth 2.0, specifically, the OAuth 2.0 protocol using JSON Web Token (JWT) tokens. In this mode, you don’t use a username or password, instead, you use a bearer token obtained from a central identity provider such as Okta, Auth0, or Kerberos. The Kyuubi server validates this token before allowing a connection.
  • Authorization via external tools: This is the process of determining what an authenticated user has permission to do. Kyuubi typically delegates authorization to external systems. Apache Ranger is a common choice, and this is what’s used in NexusOne. Ranger allows administrators to define fine-grained policies, for example, User alice can SELECT on the sales_db database. When a user submits a query like SELECT * FROM sales_db.sales_data, Kyuubi passes the query to the Ranger plugin, which checks the policy and returns a permit or deny decision.
  • Engine/Session isolation: This is a critical security and multi-tenancy feature. When a user authenticates, Kyuubi can launch an engine, such as a Spark driver, for that user. This engine runs under the user’s own OS-level identity, for example, via a Kerberos keytab or proxy user impersonation. This provides the following:
    • Data access: The engine can only access HDFS files or S3 objects that the user themselves has permission to access.
    • Resource isolation: There is resource (CPU, memory) isolation of one user’s engine from another’s.
    • Fault containment: A misbehaving or crashing engine from one user doesn’t affect the sessions of other users.
Knowing all these, if you try to connect to Kyuubi using a user identity that doesn’t have the required authentication credentials or authorization permissions, Kyuubi rejects the request.

​
Kyuubi REST APIs

Beyond JDBC/ODBC, Kyuubi exposes a REST API for programmatic management and integration. It allows you to manage sessions, submit queries, and monitor apps programmatically, which is ideal for scripts, CI/CD pipelines, or custom administrator dashboards. The following list describes how the REST API works:
  • Available endpoints: Kyuubi offers the following endpoints:
    • GET /v1/sessions: Retrieves a list of all active sessions on the server, with details like user, client IP, and creation time.
    • GET /applications: Lists the engine apps managed by Kyuubi.
    • POST /api/v1/applications: Allows for submitting a Spark app directly via REST. This is an alternative to using the spark-submit command.
    • POST /api/v1/sessions/{sessionId}/operations: Submits a SQL statement within a specified session. You first create a session via the API and then submit operations to it.
  • Authentication and headers: Access to the REST API is typically secured.
    • Mechanism: Often uses Basic Auth or an HTTP Bearer Token authentication, which is the same OAuth 2.0 JWT token used for JDBC.
    Additionally, you can also authenticate using a username and password, provided that the user exists in Keycloak and has the appropriate roles with permissions assigned.
    • Headers: Every request includes an Authorization: Bearer <your-jwt-token> header.
  • Common request/response format: All requests and responses use the JSON format, which makes it easy to parse in any programming language.
    • Request: A query submission body looks like {"statement": "SHOW DATABASES"}.
    • Response: A successful response includes fields such as operationId, status, and a resultSet when the query returns data.
  • Error handling: The API uses standard HTTP status codes.
    • 200 OK: Success
    • 400 Bad Request: Malformed request, such as an invalid JSON
    • 401 Unauthorized: Missing or invalid authentication token
    • 500 Internal Server Error: Server-side failure during processing

​
Kyuubi-submit for Spark jobs

Kyuubi-submit is a Python-based command-line interface wrapper tool designed to simplify the submission and monitoring of Spark jobs through Kyuubi. It allows you to run Spark SQL queries from outside the Kubernetes cluster. The Kyuubi-submit tool performs the following:
  • Simplifies job submission by providing an intuitive command-line interface
  • Automates monitoring with real-time status updates and progress tracking
  • Provides comprehensive logging with automatic log retrieval
  • Supports configuration management through YAML files for reusable job templates
  • Integrates seamlessly with Spark History Server and YuniKorn queue management
The following sequence describes the architectural flow behind how a submission moves through the system:
  1. You enter an input through the command-line tool or a YAML file.
  2. Kyuubi-submit merges that input with its configuration.
  3. The request goes to the Kyuubi REST API.
  4. Kyuubi submits the job to Spark on Kubernetes.
  5. You monitor the run and review the logs.
The following sections present examples of different ways to submit Spark jobs using Kyuubi-submit.

​
Basic Spark job submission

The following code describes a basic Spark Job submission:
# Submit a Spark Pi calculation job
python kyuubi_submit.py \
  --server https://kyuubi-cluster.example.com \
  --username data-engineer \
  --resource s3a://production-bucket/jobs/spark-examples-3.4.1.jar \
  --classname org.apache.spark.examples.SparkPi \
  --name "Calculate-Pi-Demo" \
  --args "1000" \
  --conf "spark.executor.memory=2g,spark.executor.instances=5" \
  --history-server spark-history.example.com \
  --show-logs
Just like the previously described architectural flow, this is what happens behind the scenes:
  1. Kyuubi authenticates with the server using the provided credentials.
  2. Kyuubi-submit constructs the batch configuration with deploy mode set to “cluster.”
  3. Kyuubi submits the job via the REST API to /api/v1/batches.
  4. Kyuubi-submit starts a monitoring loop to show real-time status.
  5. After completion, it retrieves and displays all app logs.
  6. Kyuubi-submit provides the Spark History server URL for detailed debugging.

​
PySpark job with dependencies

The following code submits a PySpark ETL job with dependencies:
# Submit a PySpark ETL job with dependencies
python kyuubi_submit.py \
  --server https://kyuubi-cluster.example.com \
  --username etl-user \
  --resource s3a://etl-bucket/scripts/data_pipeline.py \
  --name "Daily-Data-Pipeline" \
  --args "--date 2024-01-15 --input raw_data --output processed_data" \
  --pyfiles "s3a://etl-bucket/lib/utils.py,s3a://etl-bucket/lib/transformations.zip" \
  --conf "spark.sql.adaptive.enabled=true,spark.executor.memory=8g" \
  --queue "etl-jobs" \
  --show-logs
Key automatic handling:
  • No -classname needed for PySpark. It uses org.apache.spark.deploy.PythonRunner automatically.
  • Python dependencies listed in --pyfiles are automatically distributed to the cluster.
  • Kyuubi applies the YuniKorn queue configuration automatically to schedule your job.
  • Adaptive query execution enabled for better performance.

​
Production configuration with YAML

This example demonstrates how to run a production ETL job with Kyuubi-submit using a YAML configuration file. It includes the following steps:
  1. Create a file named script.py with the following code, then upload it to S3.
    from pyspark.sql import SparkSession
def main():
    spark = SparkSession.builder.getOrCreate()
    schema = "board"
    input_table = "dep"
    output_table = "dep_summary"

    df = spark.sql(f"SELECT * FROM {schema}.{input_table}")
    df.show()
    agg_df = df.groupBy("dept_name").count().withColumnRenamed("count", "total_records")
    agg_df.show()
    agg_df.write.format("hive").mode("overwrite").saveAsTable(f"{schema}.{output_table}")

if __name__ == "__main__":
    main()
  2. Create a config YAML file named dep.yaml with the following code, ensure you replace the client, username, and bucket-name:
    server: https://kyuubi.<client>.nx1cloud.com
username: <your-username>
name: dep-processing-job
show_logs: true
resource: s3a://<bucket-name>/script.py
  3. Submit the job from your local terminal:
    python kyuubi-submit.py --config-file dep.yaml
The following are what happens after submitting the job:
  1. Configuration and authentication:
    • Loads job settings from dep.yaml
    • Prompts for password: Password for user: ██████████
    • Authenticates with the Kyuubi server
  2. Job submission:
    • Submits Spark job to Kyuubi server
    • Receives batch ID such as batch_2024_01_15_08f3a2b1
    • Displays: Batch submitted successfully!
  3. Kubernetes pod creation:
    • Kyuubi triggers Spark driver pod creation in Kubernetes
    • YuniKorn scheduler assigns pods to the etl-jobs queue
    • 50 provisioned executor pods based on configuration
  4. Real-time monitoring: Kyuubi-submit displays the job state, app ID, and Spark History Server URL in your terminal:
    ⠋ State: RUNNING | App state: RUNNING (elapsed: 45s)
Spark App ID: application_1705302665123_0001
Spark History URL: http://spark-history-prod.example.com:18080/history/application_1705302665123_0001/
  5. Spark execution:
    • Spark driver runs main class: com.company.risk.AnalysisEngine
    • Distributed processing across 50 executor pods
    • Business logic executes with 16 GB memory per executor
  6. Completion and cleanup: Once the job finishes, Kyuubi-submit shows the completion status, archives logs to the Spark History Server, and automatically terminates all pods:
    State: FINISHED | App state: SUCCESS
Job completed in 4m 44s
  7. Log display if configured:
    • Application logs appear in your terminal.
    • Exit code 0 indicates successful execution.

​
Additional resources

  • To get an overview of Kyuubi, refer to the Kyuubi in NexusOne page.
  • For more details about Kyuubi, refer to the Kyuubi official documentation.
